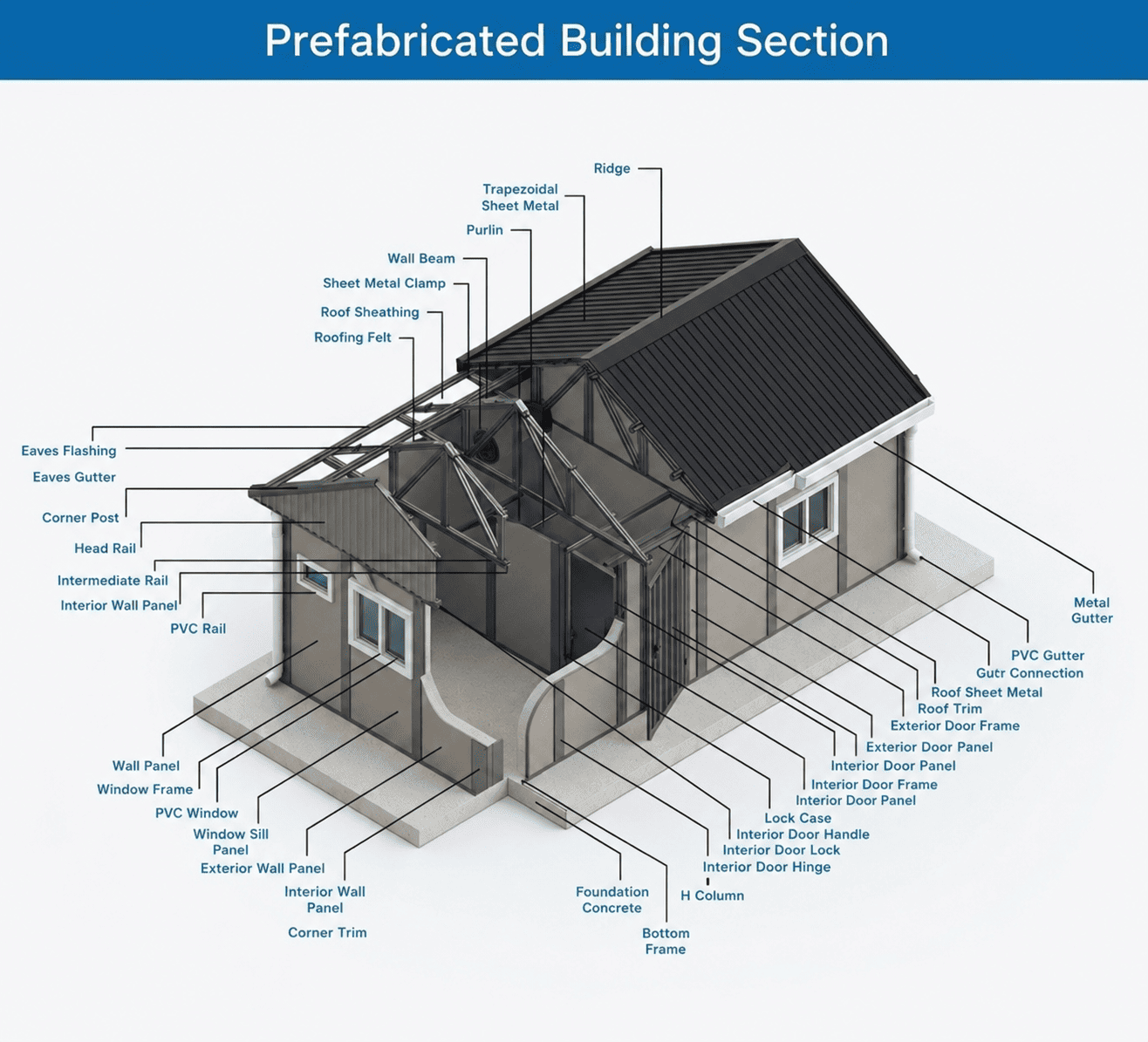

Prefabricated homes, one of the finest examples of modern modular construction technology, provide safe, comfortable, and long-lasting living spaces through robust structural systems and advanced engineering. The sectional illustration of a prefabricated home clearly demonstrates every structural layer—from the foundation to the roof—revealing the technical components that ensure strength, durability, and energy efficiency.
Structural Components and Technical Details
Roof and Roofing Systems
Trapezoidal Steel Roofing and Ridge Cap
The exterior roof is covered with durable trapezoidal steel sheets and ridge cap components that provide excellent protection against rain, wind, and harsh weather conditions.
Lightweight Steel Roof Trusses
The main roof framework consists of high-strength galvanized light steel trusses, including primary and intermediate trusses. These structural members evenly distribute snow and wind loads to the walls and foundation.
Omega Purlins and Connection Brackets
Omega purlins and their connection brackets reinforce the roof structure, increase rigidity, and provide a secure support system for the roof covering.
Roof Insulation Blanket
A high-performance thermal insulation blanket is installed beneath the roof covering to maintain indoor temperature, improve energy efficiency, and reduce heating and cooling costs.
Suspended Plasterboard Ceiling
The interior ceiling system features gypsum plasterboard panels and ceiling connection profiles, creating a smooth, modern, and aesthetically pleasing ceiling finish.
Eaves, Gutters, and Rainwater Drainage
Metal eaves, steel gutters, and PVC downpipes efficiently collect and discharge rainwater, protecting the building from water damage and extending its service life.
Exterior and Interior Wall Systems
Exterior Wall Panels
High-insulation exterior wall panels are designed to withstand varying weather conditions while providing excellent thermal and acoustic performance.
Ventilated Wall Panels
Ventilated wall panels improve natural lighting and air circulation, contributing to a healthier and more comfortable indoor environment.
Interior Wall Panels
Lightweight yet durable interior partition panels provide effective sound insulation and optimize room layouts.
Corner Posts and H-Columns
Structural corner posts and H-shaped steel columns strengthen wall connections and enhance the building's overall stability.
Gable Flashing and Roof Connection Profiles
Special flashing components and roof connection profiles ensure weather resistance while providing a clean and modern architectural appearance.
Windows, Doors, and Openings
PVC Windows and Ventilation Panels
Energy-efficient PVC windows and ventilation panels provide excellent thermal and acoustic insulation while maximizing natural daylight and ventilation.
Exterior Door System
The exterior door system includes durable insulated door panels, reinforced frames, and weather-resistant construction for maximum security and longevity.
Interior Doors
Modern interior doors, decorative door panels, and quality door frames complement the building's interior design while ensuring functionality and durability.
Foundation and Floor Structure
Concrete Foundation
The building is installed on a reinforced concrete foundation that provides long-term structural stability and load distribution.
Base Frame
The galvanized steel base frame securely anchors the building to the foundation, ensuring excellent structural integrity and resistance to external forces.
Engineered for Performance
Every component of a prefabricated home is engineered to deliver maximum performance, durability, and comfort. Manufactured under strict factory-controlled conditions using precision engineering, these systems offer outstanding earthquake resistance, superior insulation, long service life, and fast installation. By combining modern materials with advanced construction technology, prefabricated homes provide reliable, energy-efficient, and aesthetically appealing living spaces for today's homeowners.
